CUBEITMOD V6.05 Fatal Error.!

[sotakuma]

Hello.

My name is Jonathan, recently I bought a Cubex printer, I'm trying to make it work with KISSlicer, but every time that I tried to save my file using the CUBEITMOD V6.05 extension I get this message.



My printer is on 1.07 Firmware and I'm using KISSlicer V1.5 Beta 2.7 Win 32, mi PC is Windows 10.

This are my settings:

Style.



Support.



Material.



Material G-Code.



Printer - Hardware.



Printer - Firmware.



Printer - Speed.



Printer - EH.



Priner - EM.



I really hope that you can help guys, I going though the KISSlicer manual for the third time and I can't get what is causing the problem.

Kinds regard.

Jonathan

[Giovanni V.]

Hi Jonathan,
please download here :

https://www.dropbox.com/sh/3evahzu5gfel ... FeGZa?dl=0

the version 2.20, try again and let me know, the older version your're using has less settings and CubeItModV6.05 needs these new features.


[sotakuma]

Hi Jonathan,
please download here :

https://www.dropbox.com/sh/3evahzu5gfel ... FeGZa?dl=0

the version 2.20, try again and let me know, the older version your're using has less settings and CubeItModV6.05 needs these new features.


Hello Giovanni.

Thank you so much, now I finally made my first two prints.



It seems that I'm having problems with the infill, also the raft it's almost impossible to separate from the prints. Do you know if there is a tutorial on how to adjust some values in order to get better prints?

[Giovanni V.]

It seems that I'm having problems with the infill, also the raft it's almost impossible to separate from the prints. Do you know if there is a tutorial on how to adjust some values in order to get better prints?

Hi,
for sure you z-gap is not good, the first layer of the raft is too much squished on the bed, if the raft is too much squished the part will be squished on the raft resulting on too much adhesion and difficulty on removing the raft.
About the infill, post the Style and material tab to see the parameters you've used.
About a tutorial read the Kisslicer manual written by Davide Ardizzoia ( this is for general usage of KS ), for special settings concerning cubeitmod (older version but still useful) and the cubex go to :
http://www.cubexupgrade.com/

I've also started to write a detailed guide for Cubeitmod and the cubex, but at the moment I've no time to go on with this job.

[jaydie]

I'm having the same issue, I was using v2.22, I tried to download the v2.200 and it is still the same.

[Giovanni V.]

I'm having the same issue, I was using v2.22, I tried to download the v2.200 and it is still the same.

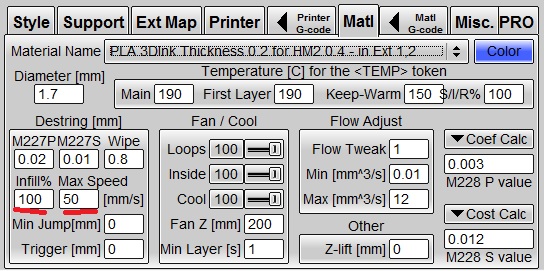

First load the language file CubeitmodV6.po into Kisslicer, this way the menu will look like the one into my previous post.

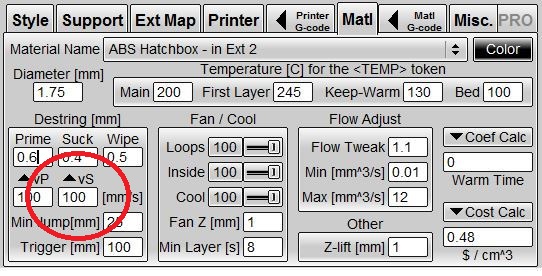

This setting will be renamed "Max Speed"
:


For a Cubex Duo I use 50, I've tested with 60 but it's too much for the printer.
Go to the Printer/Speed tab and reduce the speed that are over 40 ( If you've used max speed 50)

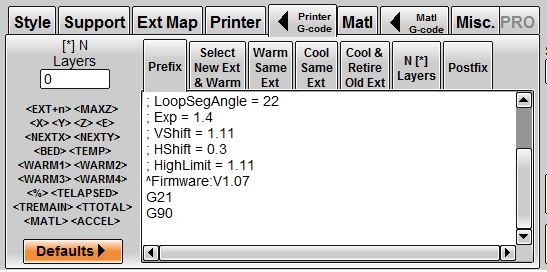

Go to Printer G-Code/Prefix tab and check if it looks like this :
; InterfaceSpeed [mm/s] = 25
; ShortSolid% = 40
; ShortInfill% = 20
; SmallLoopSpeed = 4
; LoopSegLength = 0.4
; LoopSegAngle = 22
; Exp = 1.4
; VShift = 1.11
; HShift = 0.3
; HighLimit = 1.11
^Firmware:V1.07
G21
G90

If you still cant print post here the ini and bak file.

[jaydie]

^Firmware:V1.07
; [mm] mode
G21
; absolute mode
G90

That how my G-Code prefix tab look like.

[jaydie]

I still get the Fatal Error

[Giovanni V.]

I still get the Fatal Error

Post INI & BAK file.

[jaydie]

Here are the INI file, Im not sure which BAK file is needed. is it the bfb.bak? If that is nothing was created or may be I don't know where to get it. I just include the po.bak.

Thanks so much for looking at it.
