[BUG PREVIEW ONLY] missing layer with Join-Loop at full

[dualite2]

Hello,
I think I found a bug with a particular model and a specific setting Full Joint-Loop (tab style).
This bug exists in Kiss 1.6.3 and 2 Alpha 0.9.9.
Can somebody try if it can reproduce it.
If you need other setting files, I can give them.


The pictures :

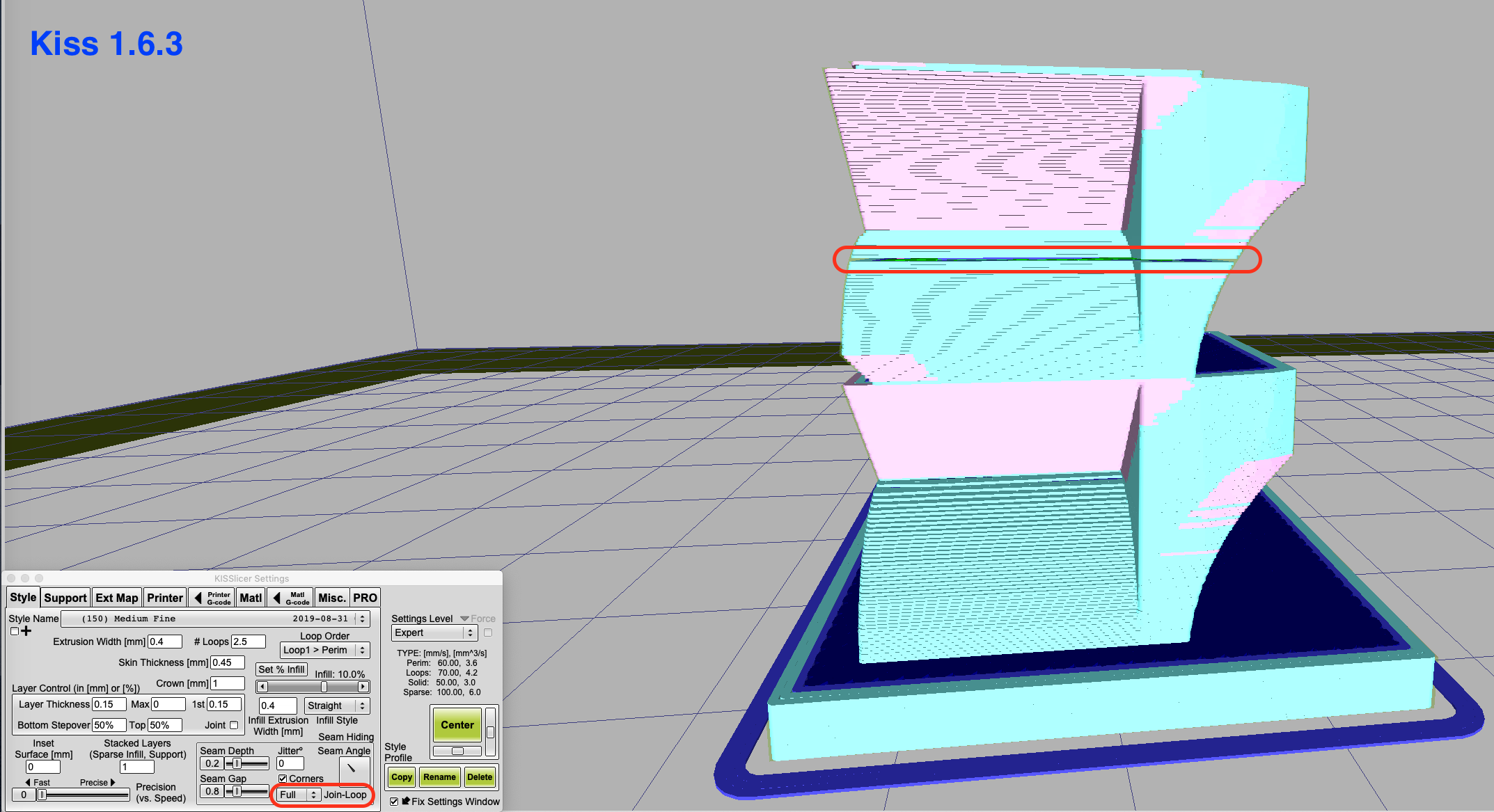

missing layer kiss 1.6

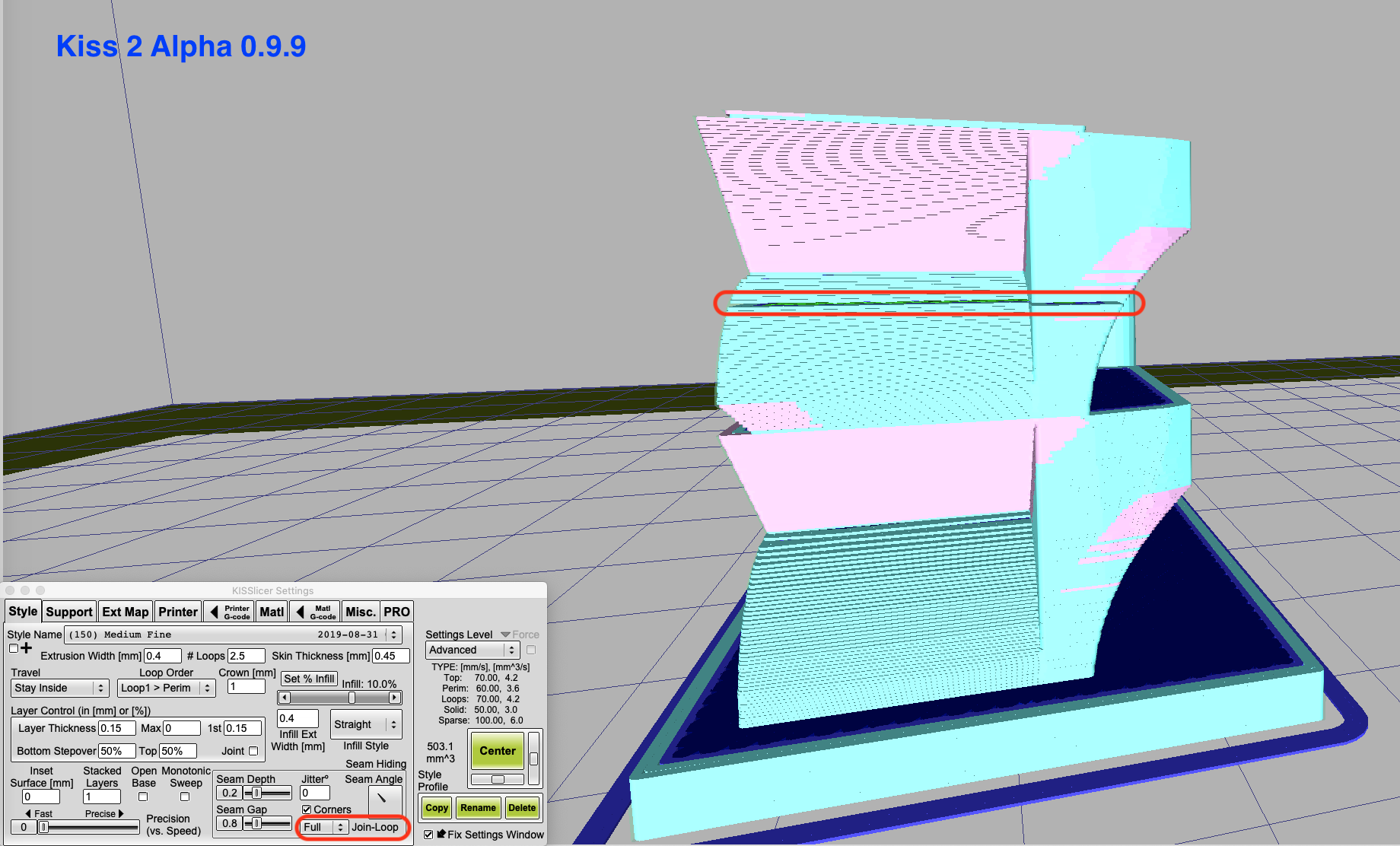

missing layer kiss 2

Correct one with Joint-Loop at Seam :

no missing layer

The model :

cut_tower_no_overhang.stl.zip

model

(16.19 KiB) Downloaded 281 times

[pjr]

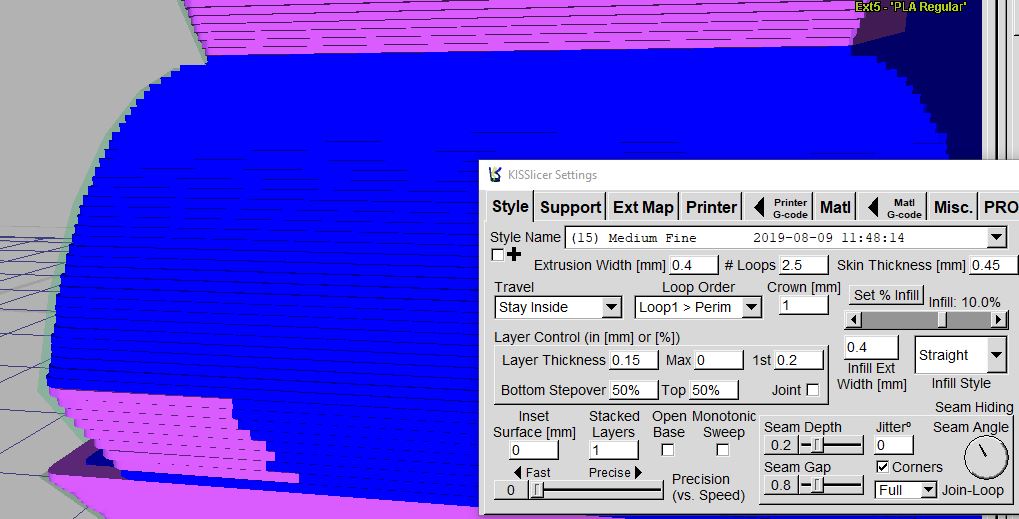

It's not happening for me:

Any chance you can upload the G-code please?

Thanks

Peter

[dualite2]

Sorry,
I forgot to set the "notify" to yes in my profile and don't see your reply.

Well, I can do better, I can zip you all the profile/setting and the generate Gcode.

Here :

missing layer.zip

(830.14 KiB) Downloaded 283 times

Thanks,

[dualite2]

Hum, I don't push further the investigation last time but... after seeing the generate G-Code with Simplify3D it's seems the generate G-code is correct.
Then it's probably "only" a preview bug, that make it totally less critical.

Thanks,
